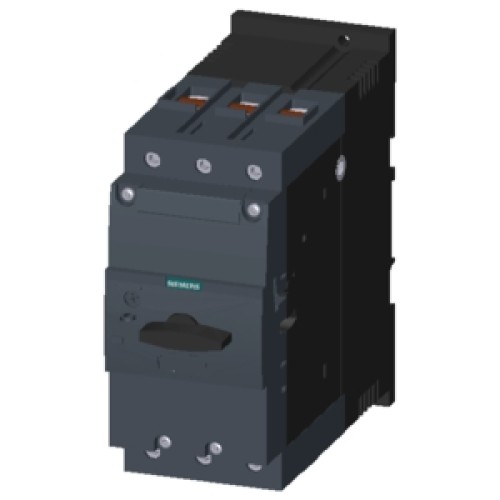

Heavy-duty Size S3 motor starter protectors from the Siemens SIRIUS range featuring robust screw terminal connections. Engineered for high-power electric motors and industrial heavy equipment to provide complete protection against short circuits and thermal overload conditions. Offers an adjustable thermal overload release range from 45A up to 100A with 65 kA short-circuit breaking capacity.
Key Features:
-
Maximum Current & Power Range: Size S3 frame supporting heavy motor loads up to 100A rated current.
-
65 kA Breaking Capacity: Superior short-circuit breaking strength for high-capacity industrial power distribution networks.
-
Sipariş Kodu Gövde Boyutu Termik Ayar Sahası (A) Kısa Devre Kesme Kapasitesi (Icu) Bağlantı Tipi 3RV2041-4JA10 Boy S3
45 - 63 A
65 kA
Vida Bağlantılı
3RV2041-4KA10 Boy S3
57 - 75 A
65 kA
Vida Bağlantılı
3RV2041-4RA10 Boy S3
65 - 84 A
65 kA
Vida Bağlantılı
3RV2041-4YA10 Boy S3
75 - 93 A
65 kA
Vida Bağlantılı
3RV2041-4MA10 Boy S3
80 - 100 A
65 kA
Vida Bağlantılı
Heavy-Duty Screw Terminals: High-torque screw connections designed for large conductor cross-sections.
Tags: siemens 3rv2041, size s3 motor starter protector, screw terminal circuit breaker, 65ka motor protection
