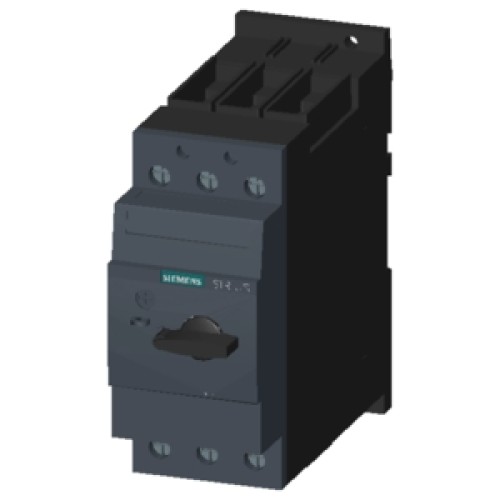

SIRIUS 3RV Motor Starter Protectors - Size S2 Screw Terminals

High-capacity Size S2 motor starter protectors from the Siemens SIRIUS range featuring robust screw terminal connections. Engineered for heavy-duty electric motors and industrial machinery to provide full protection against short circuits and thermal overload conditions. Offers an adjustable thermal overload release range from 32A up to 80A with 65 kA short-circuit breaking capacity.

Key Features:

• Heavy-Duty Current Capacity: Size S2 frame supporting large motor loads up to 80A rated current.

• 65 kA Breaking Capacity: Superior short-circuit breaking strength for demanding industrial power grids.

• Screw Terminal Technology: Robust screw connections designed for secure high-current wiring.

  Sipariş Kodu	Gövde Boyutu	Termik Ayar Sahası (A)	Kısa Devre Kesme Kapasitesi (Icu)	Bağlantı Tipi
  3RV2031-4UA10	Boy S2	32 - 40 A	65 kA	Vida Bağlantılı
  3RV2031-4VA10	Boy S2	35 - 45 A	65 kA	Vida Bağlantılı
  3RV2031-4WA10	Boy S2	42 - 52 A	65 kA	Vida Bağlantılı
  3RV2031-4XA10	Boy S2	49 - 59 A	65 kA	Vida Bağlantılı
  3RV2031-4JA10	Boy S2	54 - 65 A	65 kA	Vida Bağlantılı
  3RV2031-4KA10	Boy S2	62 - 73 A	65 kA	Vida Bağlantılı
  3RV2031-4RA10	Boy S2	70 - 80 A	65 kA	Vida Bağlantılı
