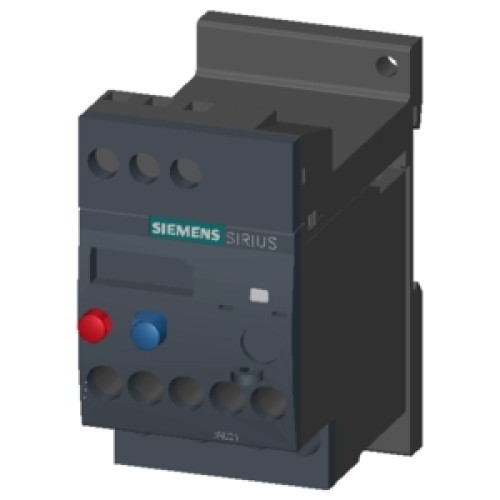

SIRIUS 3RU Thermal Overload Relays - Size S00 Screw Terminals

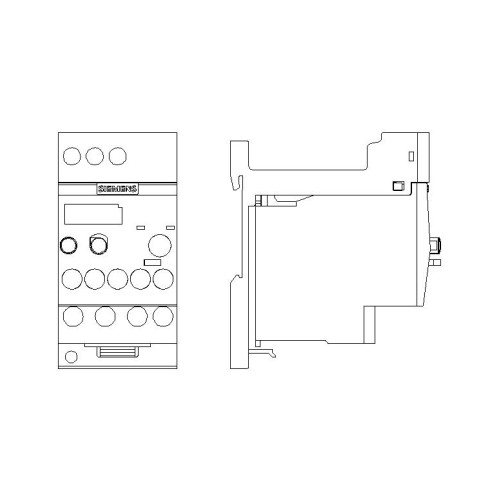

Size S00 bimetallic thermal overload relays from the Siemens SIRIUS series featuring robust screw terminal connection technology. Engineered to protect electric motors against thermal overload conditions, locked rotors, and phase failures up to 60°C ambient cabinet temperatures. Covering current setting ranges from 0.22A up to 16A, these relays include manual/automatic RESET, test/STOP buttons, and integrated 1 NO + 1 NC auxiliary contacts. Plugs directly underneath Siemens 3RT201 Size S00 power contactors.

Key Features:

• Phase Failure Protection: High sensitivity to phase loss and thermal overload conditions up to 60°C operating temperature.

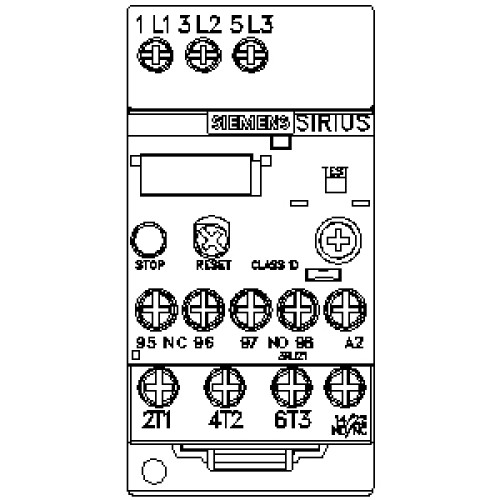

• Flexible RESET & Test Functions: Integrated Manual/Automatic RESET selector with dedicated STOP and TEST buttons.

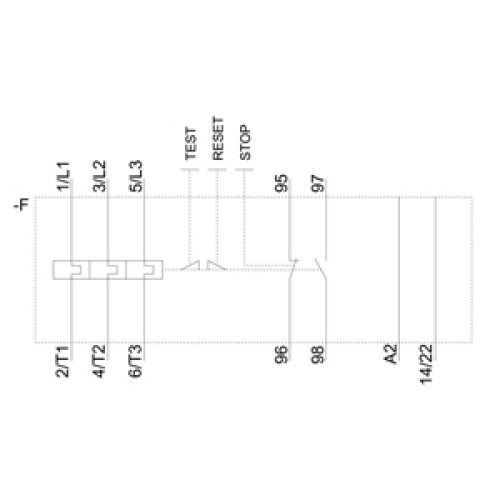

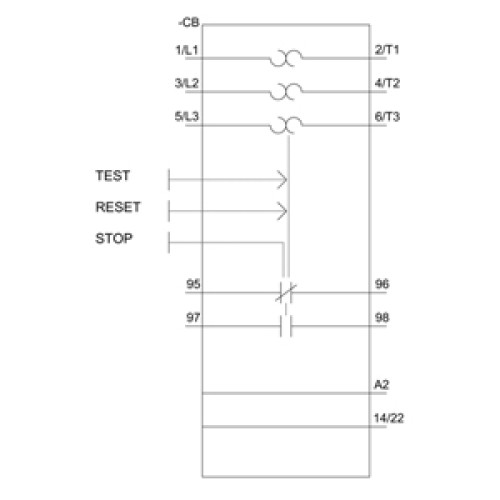

• Integrated Auxiliaries: Built-in 1 NO + 1 NC contacts and clear switching position status indicator.

  Sipariş Kodu	Gövde Boyutu	Termik Ayar Sahası (A)	Bağlantı Tipi
  3RU2116-0DB1	Boy S00	0.22 - 0.32 A	Vida Bağlantılı
  3RU2116-0EB1	Boy S00	0.28 - 0.4 A	Vida Bağlantılı
  3RU2116-0FB1	Boy S00	0.35 - 0.5 A	Vida Bağlantılı
  3RU2116-0GB1	Boy S00	0.43 - 0.63 A	Vida Bağlantılı
  3RU2116-0HB1	Boy S00	0.55 - 0.8 A	Vida Bağlantılı
  3RU2116-0JB1	Boy S00	0.7 - 1 A	Vida Bağlantılı
  3RU2116-0KB1	Boy S00	0.9 - 1.25 A	Vida Bağlantılı
  3RU2116-1AB1	Boy S00	1.1 - 1.6 A	Vida Bağlantılı
  3RU2116-1BB1	Boy S00	1.4 - 2 A	Vida Bağlantılı
  3RU2116-1CB1	Boy S00	1.8 - 2.5 A	Vida Bağlantılı
  3RU2116-1DB1	Boy S00	2.2 - 3.2 A	Vida Bağlantılı
  3RU2116-1EB1	Boy S00	2.8 - 4 A	Vida Bağlantılı
  3RU2116-1FB1	Boy S00	3.5 - 5 A	Vida Bağlantılı
  3RU2116-1GB1	Boy S00	4.5 - 6.3 A	Vida Bağlantılı
  3RU2116-1HB1	Boy S00	5.5 - 8 A	Vida Bağlantılı
  3RU2116-1JB1	Boy S00	7 - 10 A	Vida Bağlantılı
  3RU2116-1KB1	Boy S00	9 - 12.5 A	Vida Bağlantılı
  3RU2116-4AB1	Boy S00	11 - 16 A	Vida Bağlantılı
