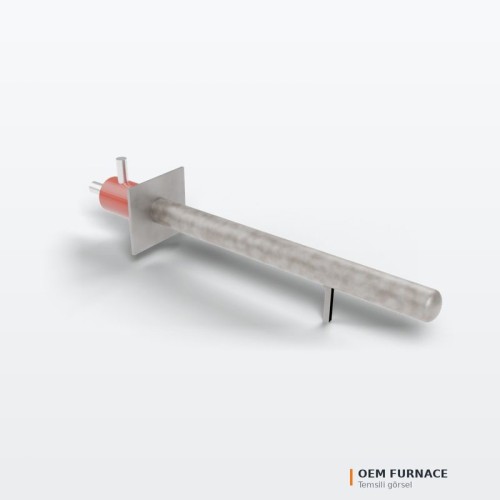

OEM FURNACE Single-Ended (I-Type) Radiant Tube
- Brand: OEM FURNACE
- Product Code: OEM-RT-I
OEM FURNACE Single-Ended (I-Type) Radiant Tube is a single-ended (SER-type) metallic radiant tube entering the furnace from one wall, consisting of a closed-end outer tube and an inner flame tube. It is used with self-recuperative burners (e.g. Kromschröder ECOMAX); flue gas travels through the inner tube and returns through the annulus of the outer tube.
Technical data
| Product | Single-Ended (I-Type) Radiant Tube |
|---|---|
| Code | RT-I |
| Construction | Closed-end outer tube + inner flame tube, mounting flange, inner tube supports |
| Material | Heat-resistant stainless steels: 1.4828 (AISI 309 equivalent), 1.4841 (AISI 310 equivalent) welded tube/sheet; 1.4848 (GX40CrNiSi25-20) for cast parts. Selected according to tube surface temperature and atmosphere. |
| Matching burner | Self-recuperative burners; burner and tube diameters are selected together |
| Heating | Indirect: combustion gases stay inside the tube, heat is transferred to the furnace by radiation from the tube surface |
| Application | Protective-atmosphere heat-treatment furnaces (carburizing, hardening, annealing), galvanizing and continuous annealing lines, aluminium heat-treatment furnaces |
| Size / capacity | According to furnace, burner and process data; defined at quotation |
| Manufacturer | OEM FURNACE |
The product is designed and manufactured by OEM FURNACE for your furnace, burner and process; diameter, length, material and connection dimensions are defined together at quotation stage. Simply send us the dimensions or drawing of your existing part.
For price and lead time, use the Request a Quote button or call +90 533 945 27 94.
