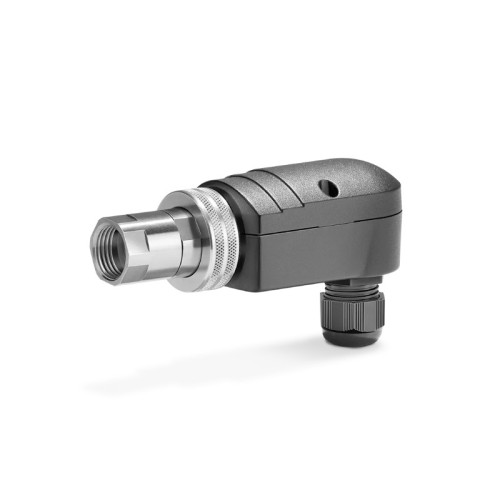

Kromschröder UVS 10 UV Flame Sensor
- Brand: Krom Schroder
- Product Code: UVS 10
Kromschröder UVS 10 detects the flame of gas burners via ultraviolet radiation. It is certified together with Kromschröder burner control units.
Technical data
| Operation | Flame supervision in intermittent operation |
|---|---|
| Supply | 220/240 VAC from the burner control unit |
| Output | ≥ 1 µA DC signal |
| UV tube life | Approx. 10,000 operating hours |
| Enclosure | IP65 |
| Ambient temperature | -40 … +80 °C |
| Cable entry | M20, 7–13 mm cable |
Technical data is based on manufacturer documentation and is for information only; the exact order code for your application is defined at quotation stage.
For price and lead time, use the Request a Quote button or call +90 533 945 27 94.
Tags: Kromschröder, UVS 10, UV sensor, flame sensor, flame detector
