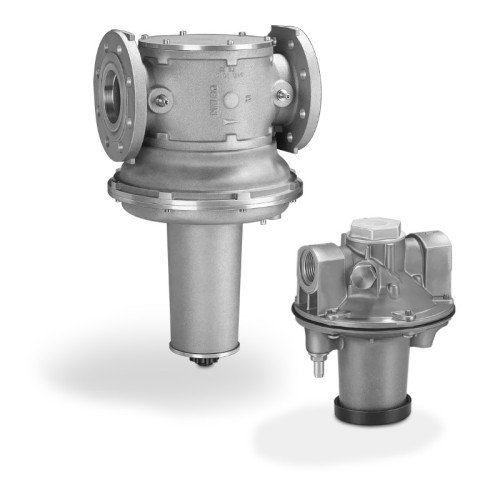

Kromschröder GIK 65F Air/Gas Ratio Control DN65 Flanged
- Brand: Krom Schroder
- Product Code: GIK 65F
Kromschröder GIK 65F is an air/gas ratio control with DN65 (Flange DN65, PN 16) connection. It matches the gas pressure to the burner to the combustion air pressure sensed via an impulse line at a 1:1 ratio; as the air butterfly valve opens, gas increases in the same proportion and the air/gas ratio is kept over the whole capacity range. Standard version for modulating burners.
Technical data
| Model | GIK 65F |
|---|---|
| Nominal size | DN65 |
| Connection | Flange DN65, PN 16 |
| Control type | Continuous (modulating) |
| Gas / air pressure ratio | 1:1 |
| Max. inlet pressure | 200 mbar |
| Outlet pressure | 0.2 … 119 mbar |
| Air control pressure | 0.5 … 120 mbar |
| Turndown | 10:1 |
| Low-fire adjustment | -2 … +2 mbar |
| Bypass | — |
| Test points | Test points at inlet and outlet (-6) |
| Length (L) / weight | 340 mm / 10.9 kg |
| Ambient temperature | -15 … +60 °C |
| Body | AlSi |
| Standards | EN 88-1, (EU) 2016/426 |
We can supply the ratio control together with the air-side butterfly valve (BVA) and actuator (IC 20 / IC 40) as a complete gas/air train.
Technical data is based on manufacturer documentation and is for information only; the exact order code for your application is defined at quotation stage.
