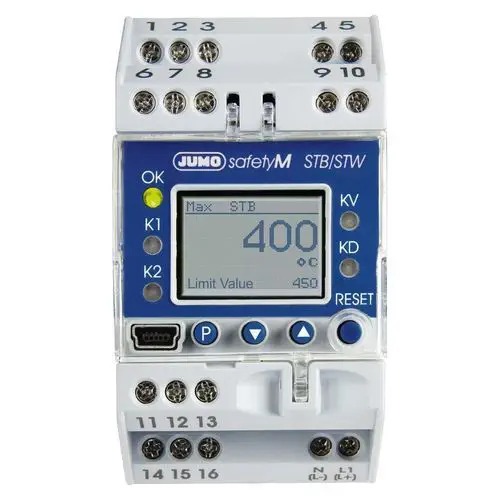

A second temperature protection working independently of the main controller is a basic safety measure against overheating of heaters and load. JUMO safetyM STB/STW cuts the heating when the limit is exceeded; in STB mode a manual reset is required. This is the limiter we prefer in our furnace panels.
Technical data
| Type | 701150 – DIN-rail safety temperature limiter / monitor |
|---|---|
| Function | Configurable as STB (safety temperature limiter, latching) or STW (safety temperature monitor) |
| Standards | DIN EN 14597; suitable for AMS 2750 and CQI-9 applications |
| Inputs | 2 universal analogue inputs (TC, Pt100, etc.); 1oo2D structure for high reliability |
| Outputs | 2 relays (pre-alarm and limit), 1 analogue output |
| Display | Backlit LCD with plain text |
| Supply | 110–240 VAC or 24 VAC/DC (depending on model) |
| Mounting | DIN rail, IP20 |
| Other | Internal/external unlocking, pre-alarm (absolute or relative to limit), USB setup and archiving |
Technical data is based on manufacturer documentation and is for information only; the exact order code for your application is defined at quotation stage.
For price and lead time, use the Request a Quote button or call +90 533 945 27 94.
