Foseco C 80 C-Shape Isostatic Crucible – 80 kg Cu
- Brand: Foseco (Vesuvius)
- Product Code: FOSECO C 80
Foseco C 80 is an isostatically pressed c-shape crucible for copper alloys, narrow tall lift-out furnaces; it holds approx. 80 kg copper alloy.
Technical data
| Shape / size | C 80 – C-Shape |
|---|---|
| Capacity | approx. 80 kg copper alloy |
| Height (H) | 440 mm |
| Top outside diameter (D) | 275 mm |
| Bottom diameter (d) | 205 mm |
| Manufacture | Isostatically pressed |
| Use | copper alloys, narrow tall lift-out furnaces |
Grades: Enertek (energy efficient, melting and holding), Duratek (extended life in specific applications), Diamant Special (low temperature, chemical resistance), Diamant Universal (high temperature incl. copper alloys) and Diamant Top (high-frequency / high-power induction). We select the grade together according to furnace type and metal.
We can carry out crucible replacement, stand and installation. Our furnaces are designed to accept crucibles of different makes; send us your current crucible dimensions and we will identify the equivalent model together.

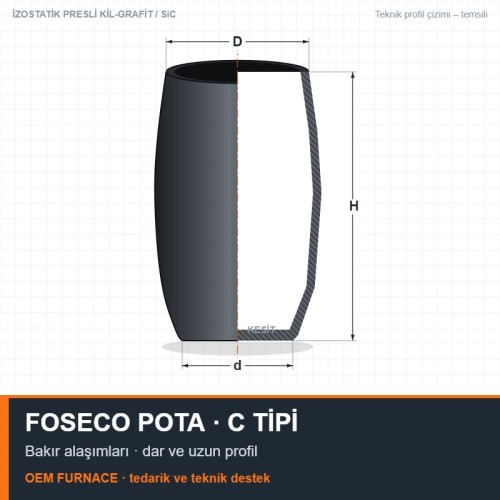

Dimensions are taken from the manufacturer catalogue (Foseco – Crucibles for Non-Ferrous Applications); normal manufacturing tolerances apply. The catalogue size value indicates approximate capacity. The image is a representative cross-section of the crucible shape.
For price and lead time, use the Request a Quote button or call +90 533 945 27 94.
